EST Lithium Iron Phosphate Series
Application scenarios Suitable for various mainstream hybrid inverters Suitable for DC loads Suitable for energy storage inverters Suitable
Product details
Application scenarios
Suitable for various mainstream hybrid inverters
Suitable for DC loads
Suitable for energy storage inverters
Suitable for inverters
Special battery applications
Product Features
Lithium iron phosphate batteries meet CE standards.
Product safety: No fire after thermal runaway, and integrated module level fire protection; Equipped with Level 3 fire protection;
Capable of direct parallel connection between clusters;
3 or more clusters connected in parallel, equipped with a fault exit mechanism
Remote monitoring and maintenance function
Meet both indoor and outdoor application scenarios

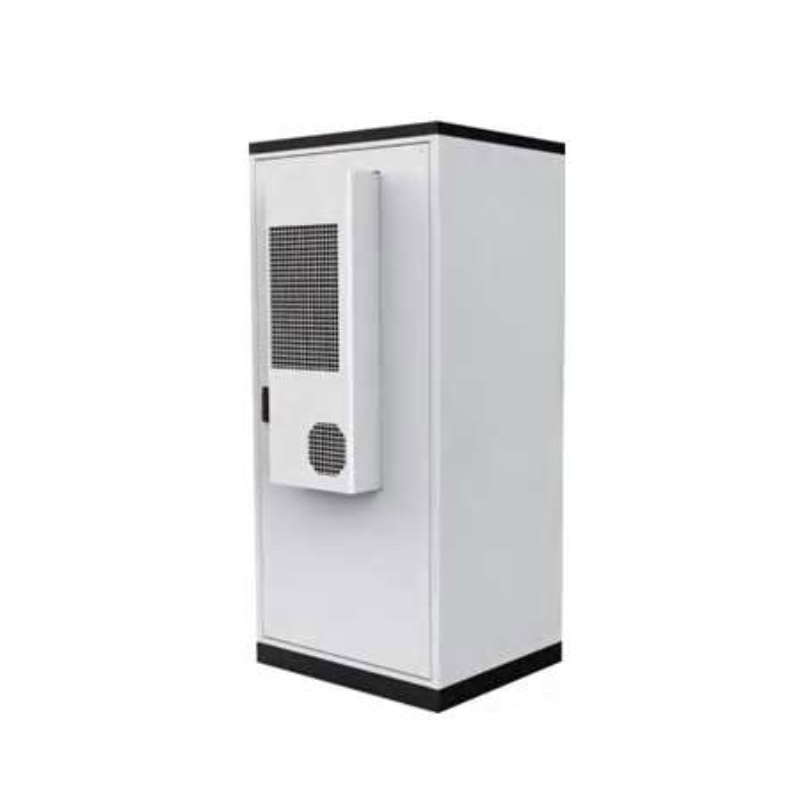

Specification parameters(Outdoor lithium iron phosphate battery)
| Model | EST050512-100WP | EST100512- 200WP | EST160512- 200WP | EST241768- 200WP |
| Battery parameters | ||||
| Rated voltage | 512VDC | 512VDC | 512VDC | 768VDC |
| Battery capacity | 51KWH | 102KWH | 160KWH | 241KWH |
| Charging voltage range | 552~560VDC | 552~560VDC | 552~560VDC | 828~840VDC |
| Battery range | 448~576VDC | 448~576VDC | 448~576VDC | 672~864VDC |
| Maximum charging current | 100A | 150A | 150A | 150A |
| Maximum discharge current | 120A | 200A | 200A | 200A |
| Number of cell cycles | 4000 times | 4000 times | 6000 times | 6000 times |
| Depth of discharge | 80% | |||
| System parameters | ||||
| Operating temperature range | -30~50°C (derating over 50°C) | |||
| Storage temperature range | 0~40℃ | |||
| Humidity range | 0~95% non-condensing | |||
| Control mode | EMS and remote monitoring | |||
| Cooling method | Smart air conditioner | |||
| Fire protection requirements | Module-grade aerosol/heptafluoropropane | |||
| System assurance | The system has the function of power failure protection | |||
| Installation/degree of protection | Outdoor/IP54 | |||
| Communication interface | Ethermet/CAN /RS485 | |||
| altitude | 2000m, more than 2000m derating use | |||
| Product dimensions | 800*1200*2200 | 1300*1200*2000 | 1300*1200*2300 | |
| Product weight | 750KG | 1100KG | 1450KG | 2050KG |
| Shipment certification | Has UN38.3 shipping certification | |||
| Product standards | Meets IEC62619 ICE61000 |
The above product has UN38.3 certification.
Specification parameters (indoor lithium iron phosphate battery)
| Model | EST050512-100NP | EST100512- 200NP | EST160512- 200NP | EST241768- 200NP |
| Battery parameters | ||||
| Rated voltage | 512VDC | 512VDC | 512VDC | 768VDC |
| Battery capacity | 51KWH | 102KWH | 160KWH | 241KWH |
| Charging voltage range | 552~560VDC | 552~560VDC | 552~560VDC | 828~840VDC |
| Battery range | 448~576VDC | 448~576VDC | 448~576VDC | 672~864VDC |
| Maximum charging current | 100A | 150A | 150A | 150A |
| Maximum discharge current | 120A | 200A | 200A | 200A |
| Depth of discharge | 90% | |||
| System parameters | ||||
| Operating temperature range | -0~40°C (derating over 50°C) | |||
| Storage temperature range | 0~40℃ | |||
| Humidity range | 0~95% non-condensing | |||
| Control mode | EMS and remote monitoring | |||
| Cooling method | Natural air cooling | |||
| Fire protection requirements | Module-level aerosols | |||
| System assurance | The system has the function of power failure protection | |||
| Installation/degree of protection | Outdoor/IP20 | |||
| Communication interface | Ethermet/CAN /RS485 | |||
| altitude | 2000m, more than 2000m derating use | |||
| Product dimensions | 600*1000*2000 | 1100*1000*2000 | 1100*1200*2300 | |
| Product weight | 1100KG | 1220KG | 2650KG | 2930KG |
| Shipment certification | Has UN38.3 shipping certification | |||
| Product standards | Meets IEC62619 ICE61000 |
The above product has UN38.3 certification.
